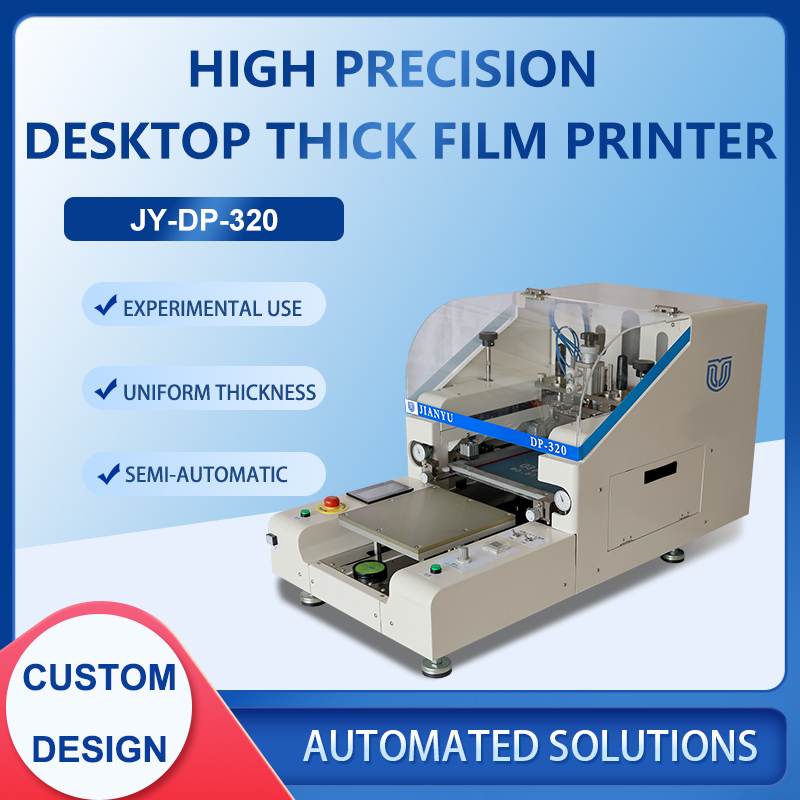

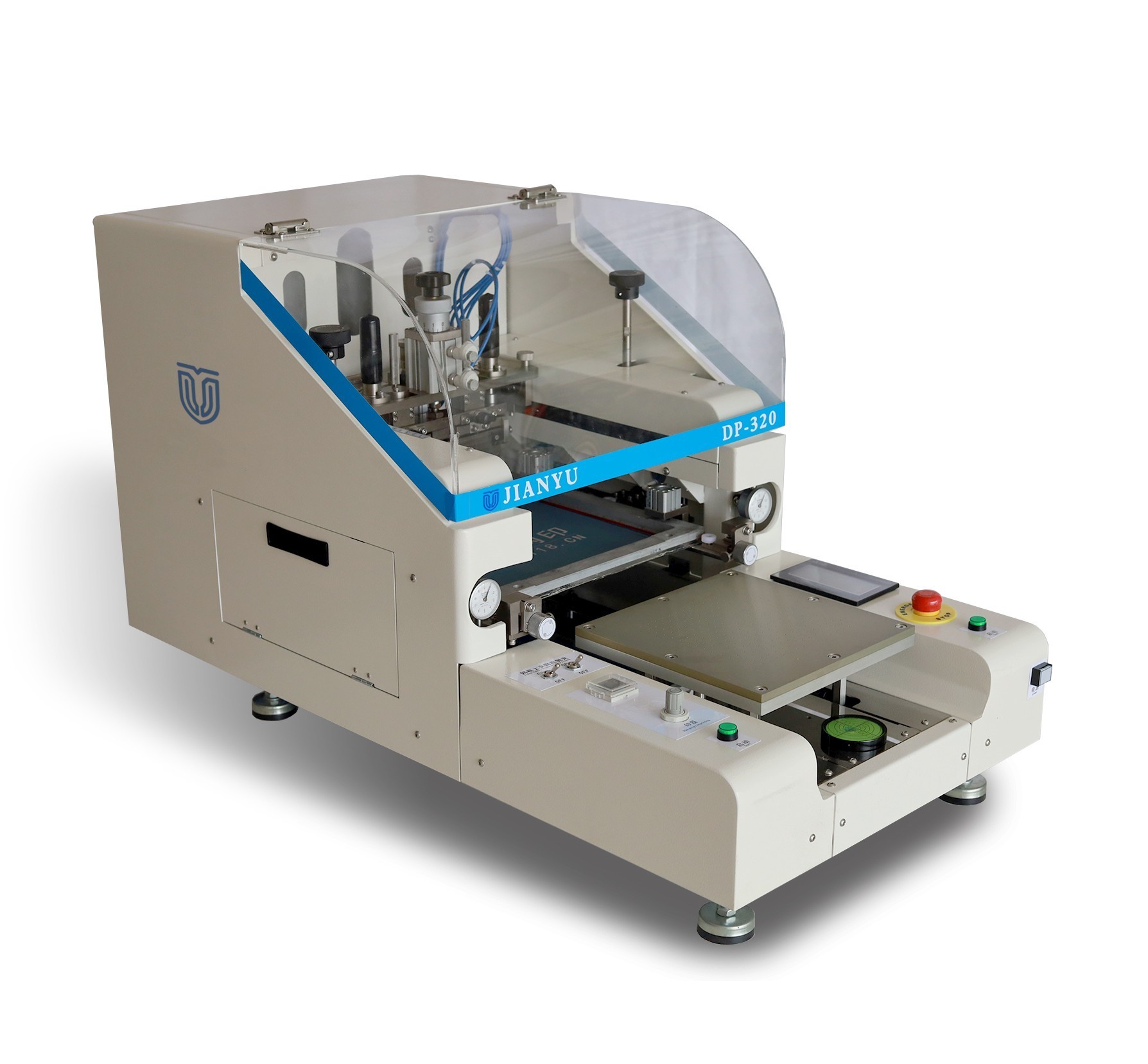

DP-320 Desktop Screen Printer

No.JY-DP-320
Max Printing size: 100mmx100mm
Operation mode: Semi-automatic Printing surface: Flat substrate This is a small desk thick film screen printer applies to small electronic components, laboratory, research and teaching.I t can be also used for small-scale and pilot process study.
Application Example:
Ceramic circuit board
Metal substrate
Semiconductor
Touch screen
Electronic components
  • DP-320 Desktop Screen Printer,JYSP
  • DP-320 Desktop Screen Printer,JYSP

SPECIFICATION

Features:
1. Equipped with transparent hood, printing head is intuitive, dust-proof and moisturizing.
2. Scraper head adopts switch operation, which is convenient to exchange scraper and squeegee.
3. Various modes, such as printing speed and printing stroke, are all set digitally.
4. Screen frame is fixed on screen shelf through one key operation by cylinder, which is convenient and fast to exchange screen frame.
5. Repetition accuracy is within ± 10μm, which realizes a low price.

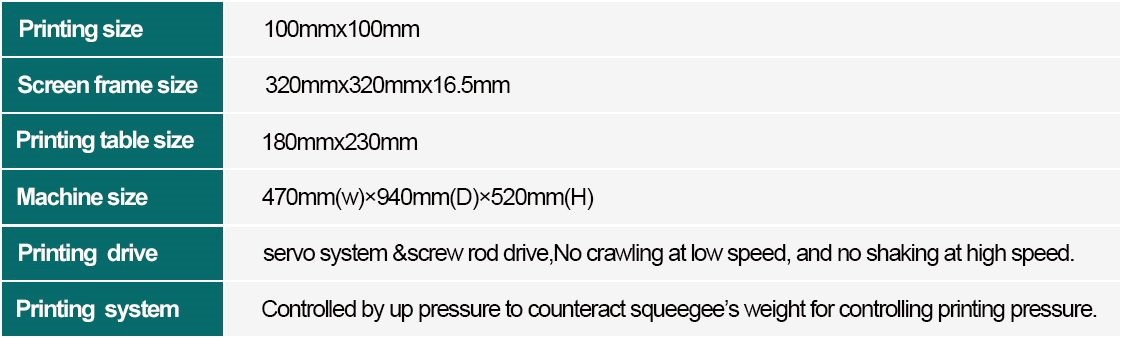

Basic Specifications
