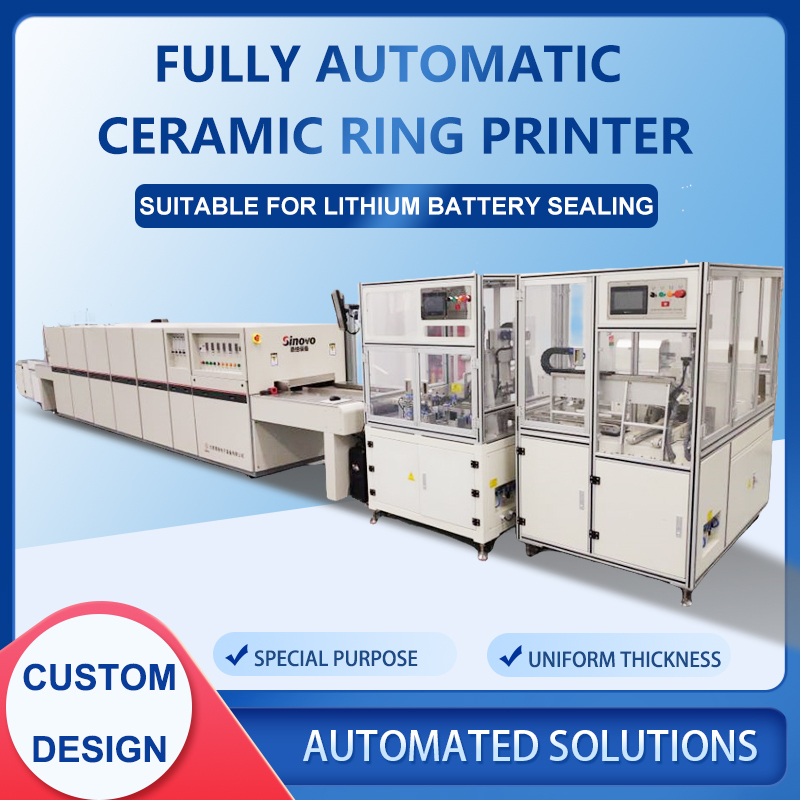

Fully Automatic Lithium Battery Ceramic Ring Screen Printer: Precision Redefined in Electroceramics Manufacturing

Technical Overview

The Fully Automatic Lithium Battery Ceramic Ring Screen Printer represents a breakthrough in advanced manufacturing technology for power battery sealing components. Engineered for ±0.015mm printing accuracy - equivalent to 1/6 the diameter of a human hair - this system sets new standards in precision electroceramics production.

Core Applications

1. Power Lithium Battery Sealing Groups

• En hermetic sealing for cylindrical/prismatic battery cells
• Critical for next-generation 800V+ battery architectures
• Compatible with NCM/NCA/LFP cathode chemistries

2. Fuel Cell Components

• Proton exchange membrane (PEM) stack fabrication
• Bipolar plate patterning
• Gas diffusion layer (GDL) functionalization

3. Advanced Sensor Manufacturing

• MEMS pressure/thermal sensors
• IoT-enabled smart sensors
• Automotive-grade position sensors System Architecture | Module | Technical Specifications | Functional Advantages | |--------|--------------------------|-----------------------| | Transport System | AGV-based material handling
  300-400 cycles/hour | Seamless SMEMA compatibility
  Anti-vibration wafer carriers | | Printing System | 6-axis micro-adjustment stage
  Vision-guided alignment (5μm repeat) | Multi-layer registration capability
  Automatic stencil tension control | | Flipping | Vacuum-assisted 180° rotation
  0.02° angular precision | Non-contact wafer handling
  Cross-contamination prevention | | Sintering Unit | IR + hybrid heating
  Ramp rate: 0.1-10°C/sec | Atmosphere control (N₂/Ar)
  In-situ warpage detection |

Enhanced Production Workflowmermaid

graph LR A[AGV Loading] --> B[Pre-alignment] --> C[First-side Printing] C --> D[Scraper System] D --> E[Instant Drying] E --> F[Intermediate Sintering] F --> G[Non-contact] G --> H[Reverse-side Printing] H --> I[Final Sintering] I --> J[AGV Unloading]

1. **Industry-Leading Precision

• Sub-micron registration accuracy
• Automated thickness control (CTQ < 1.5%)

1. Process Integration

• In-line metrology integration
• Real-time process adjustment via ML algorithms

1. Material Flexibility

• Compatible with:
  • Al₂O₃ (96-99.9%)
  • ZrO₂ (3Y/8Y)
  • AlN substrates

1. Operational Excellence -EE > 92%

• Quick changeover (<15 min)
• Predictive maintenance enabled
