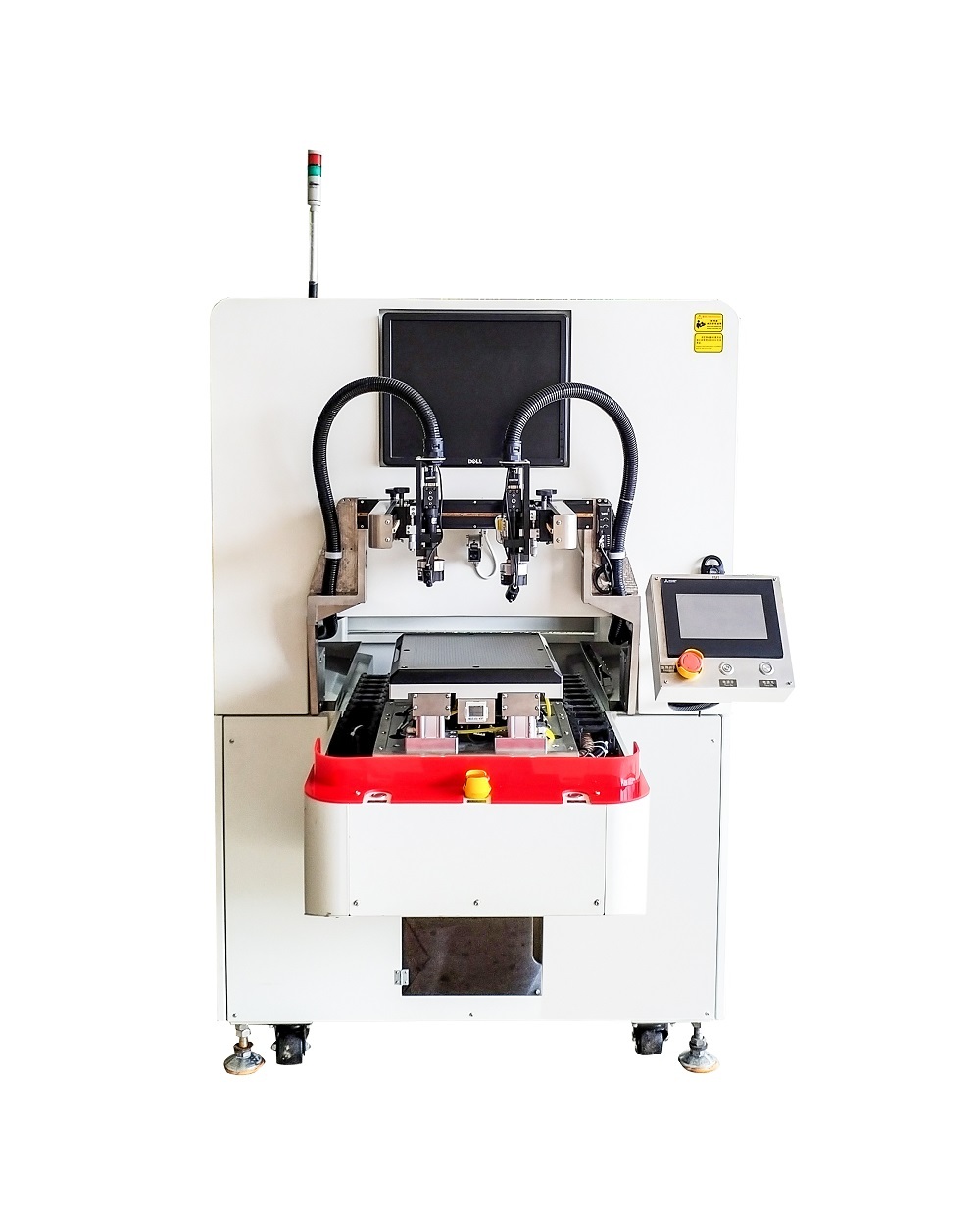

HG-250-CCD Screen Printer

No.JY-HG-250-CCD

Maximum printing size: 250mmx250mm
The printing accuracy: ± 5um

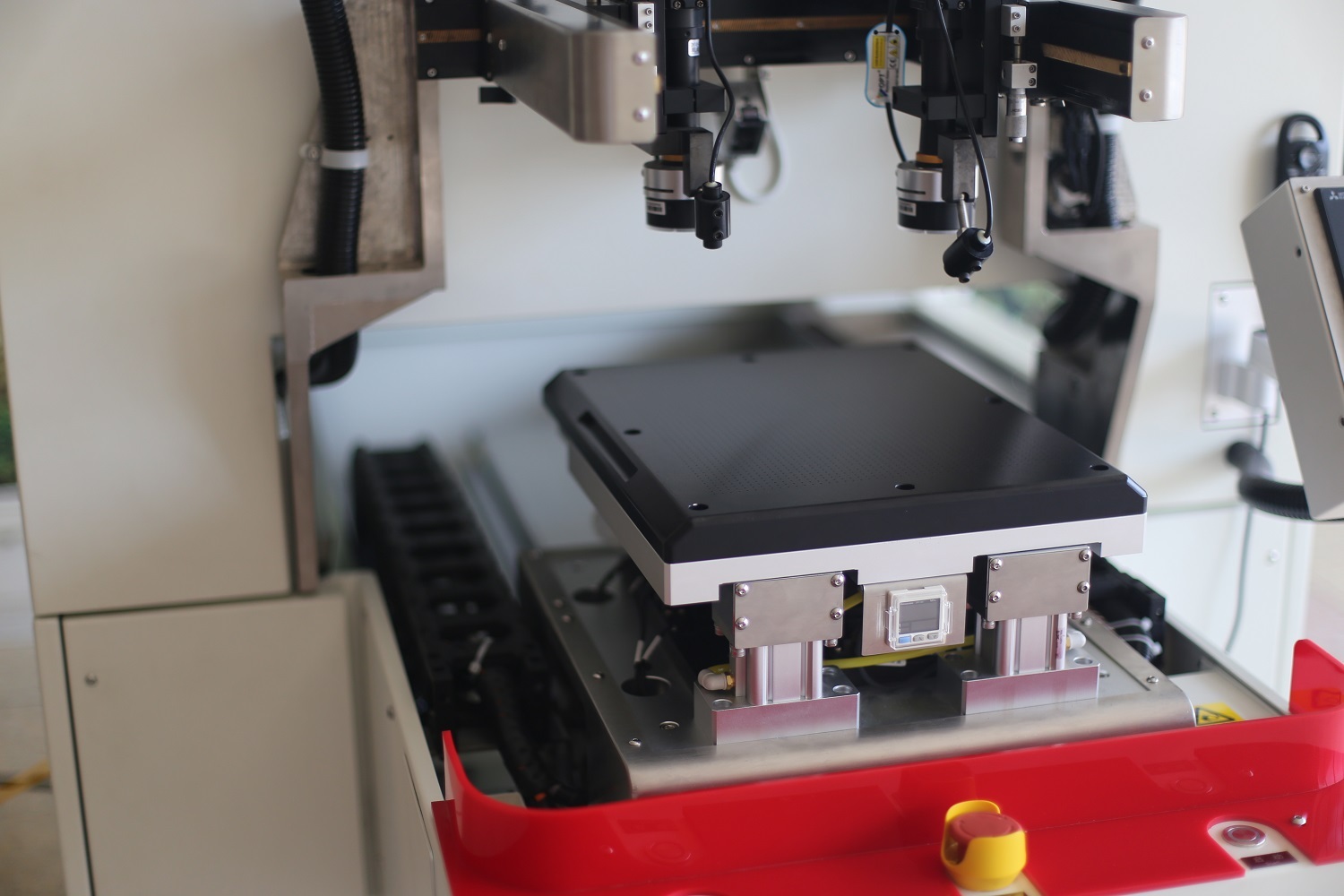

The screen printer can be used for precision screen printing of ceramic substrates, electronic components, ,PCB boards and other fields. It is equipped with CCD automatic visual alignment to reduce manual feeding errors. The HG-250 screen printer is an upgraded version of the IC-250B, with the main difference being that some precision accessories have different brands and the same functions

Application Example:

Ceramic circuit board

Semiconductor

Sensor

Touch screen

LED parts

Film device

Car parts

Electronic components

SPECIFICATION

Features:

1. High hardness screen structure can ensure stable high-precision printing.

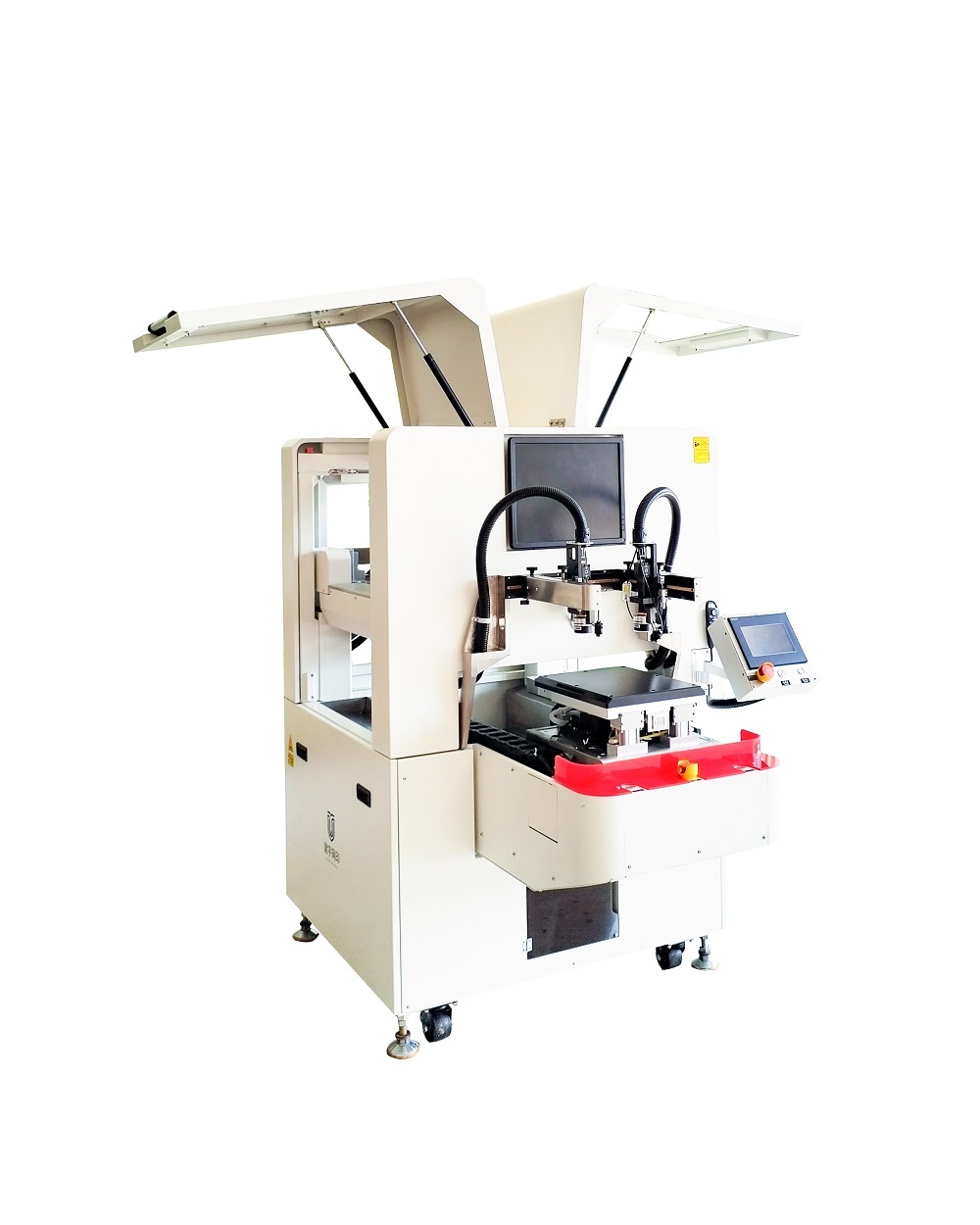

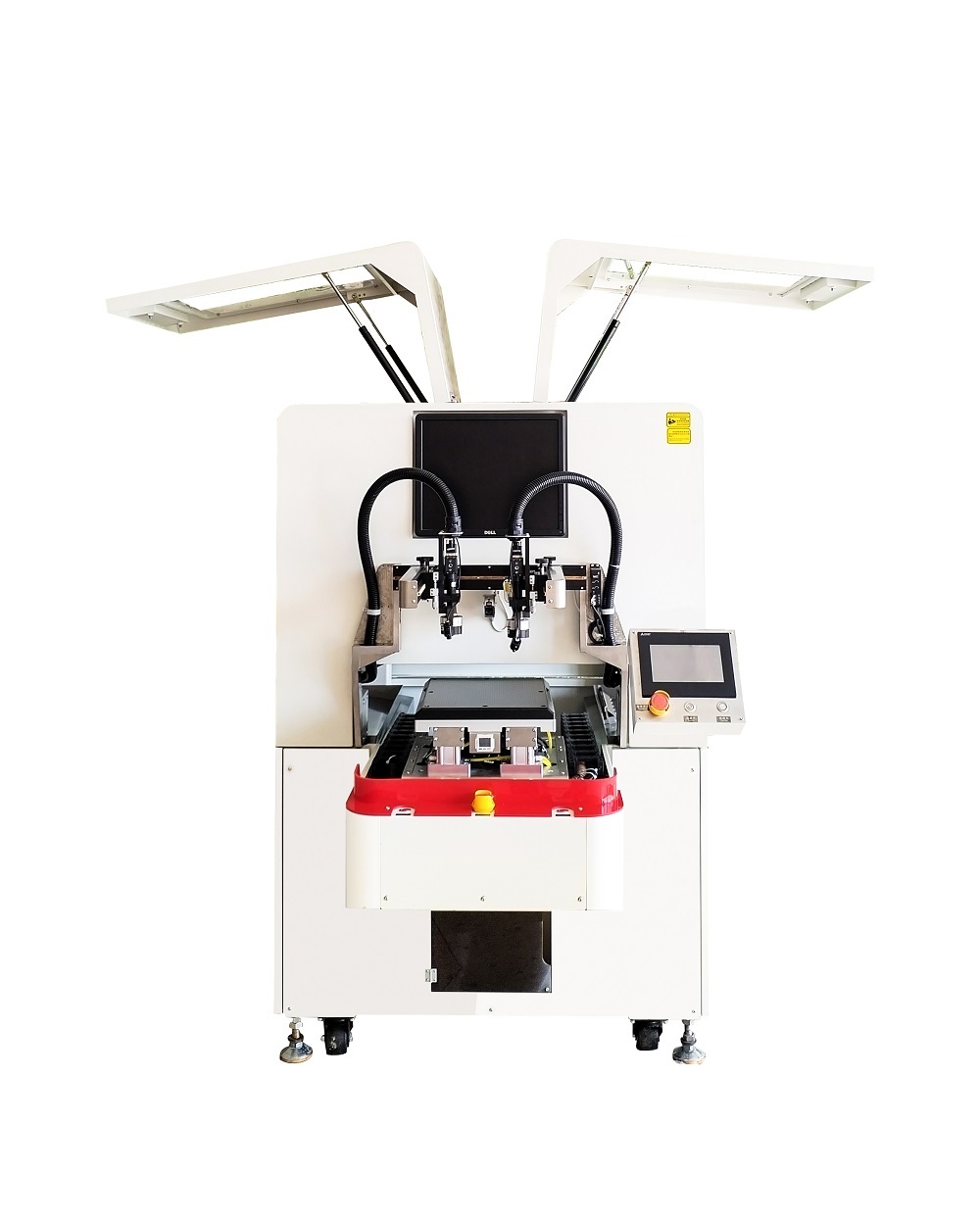

2. Equipped with transparent hood, printing head is intuitive, dustproof & moisturizing.

3. Scraper head adopts switch operation, which is convenient to exchange scraper and inking knife.

4. Screen frame is fixed on equipment by cylinders through a key operation,which is convenient to exchange screen frame.

5. It can be refitted from standard model to automatic production line.

6. The independent power are used for printing pressure, printing drive, and platform drive, controlled by PLC.

7. It can be configured with Suction platform,Permanent magnet adsorption platform,Microporous ceramic platform,Central positioning platform,etc.

Basic Specifications
