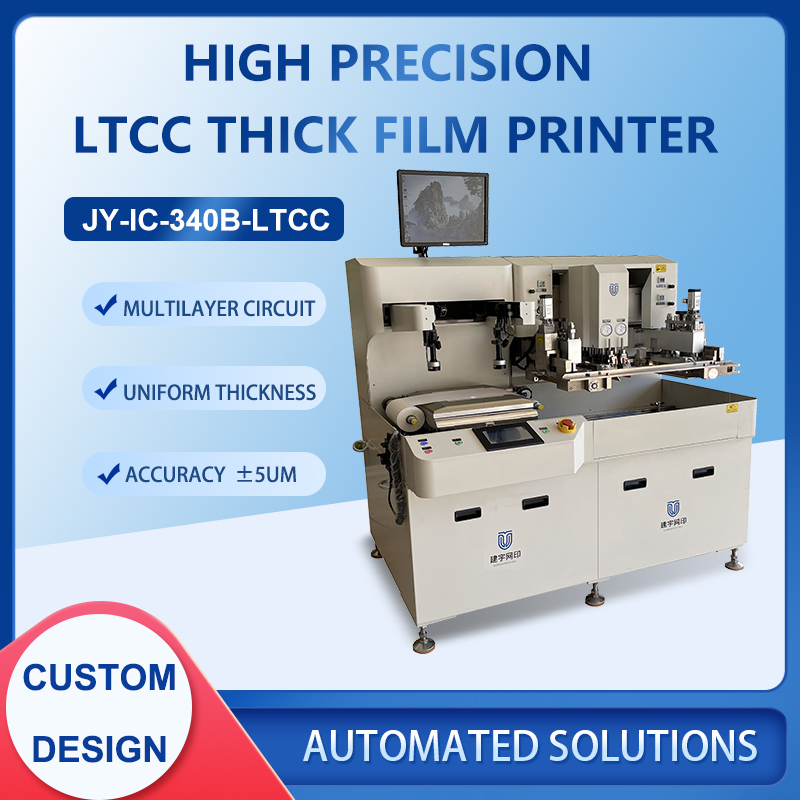

IC-340B-LTCC Screen Printer

No.IC-340B-LTCC
Maximum printing size: 280mmx280mm
The printing accuracy: ± 5um

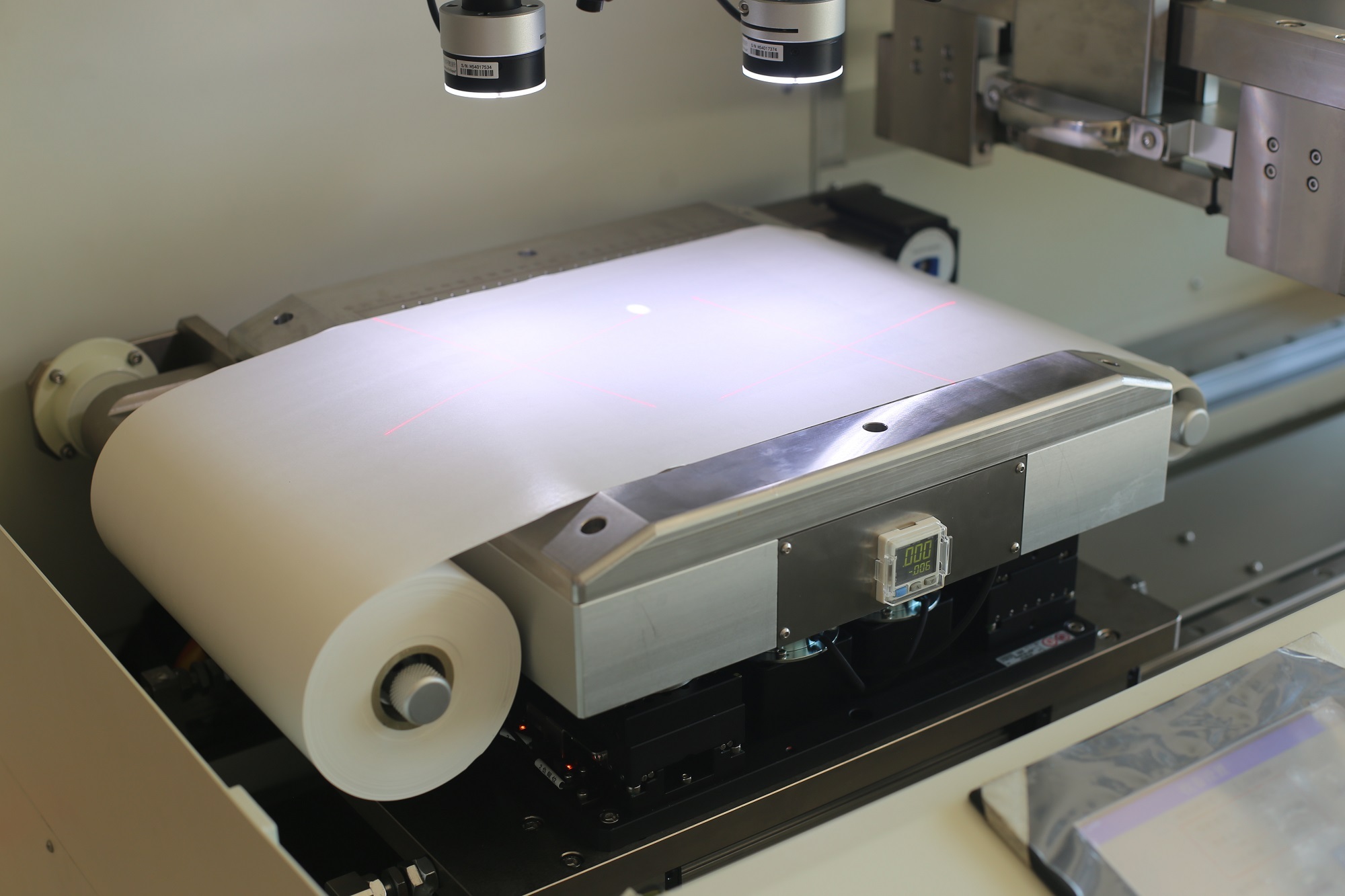

This is the special screen printer for Production of Multilayer circuit Components such as LTCC,HTCC,MLCC, fuel cell,solar cell,etc. The platform is equipped with a special roll paper platform, effectively preventing cross contamination during printing.
Application Example:
Ceramic circuit board
LTCC/HTCC/MLCC
Solar battery
Fuel cell
Semiconductor
Sensor
Touch screen
LED parts
Film device
Car parts
  • IC-340B-LTCC Screen Printer,JYSP
  • IC-340B-LTCC Screen Printer,JYSP
  • IC-340B-LTCC Screen Printer,JYSP

SPECIFICATION

Features:
1. High hardness screen structure ensures stable high-precision printing.
2. Printing head adopts switch operation, which is convenient to exchange scraper and squeegee.
3. Printing stroke is adjustable electrically, and printing angle is displayed and adjusted by a mechanical meter of 0.01mm.
4.The printing frame is fixed on a solid welding frame to achieve high rigidity consistency .
5. Cylinder compress screen frame on the screen shelf through a key operation, which is convenient and fast to exchange screen frames.
6. Install infrared reference on the platform surface
7. It can be can be printed with buried holes or through holes and refitted from standard model to automatic production line.
