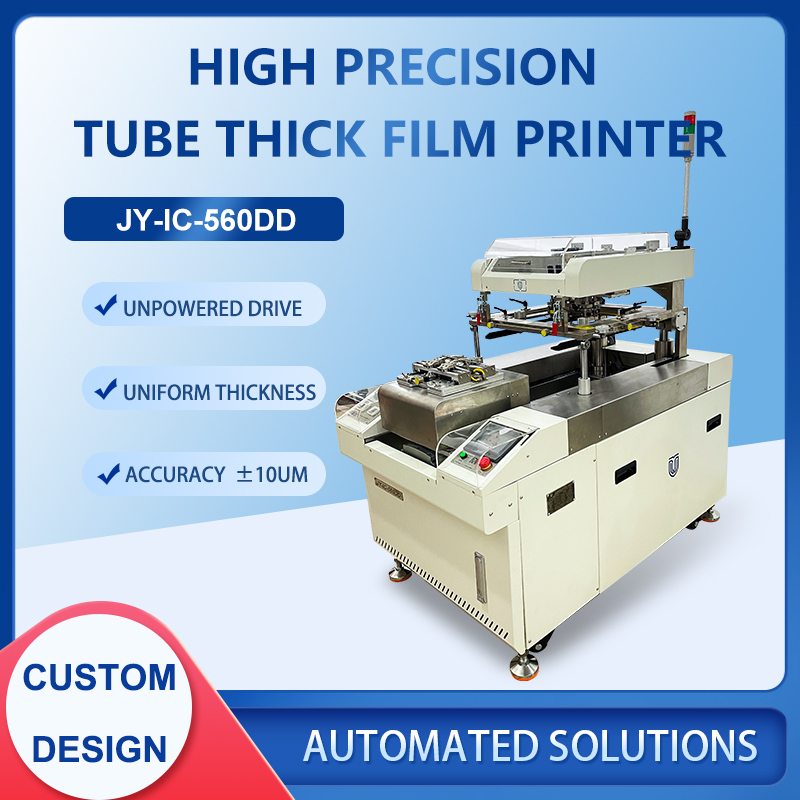

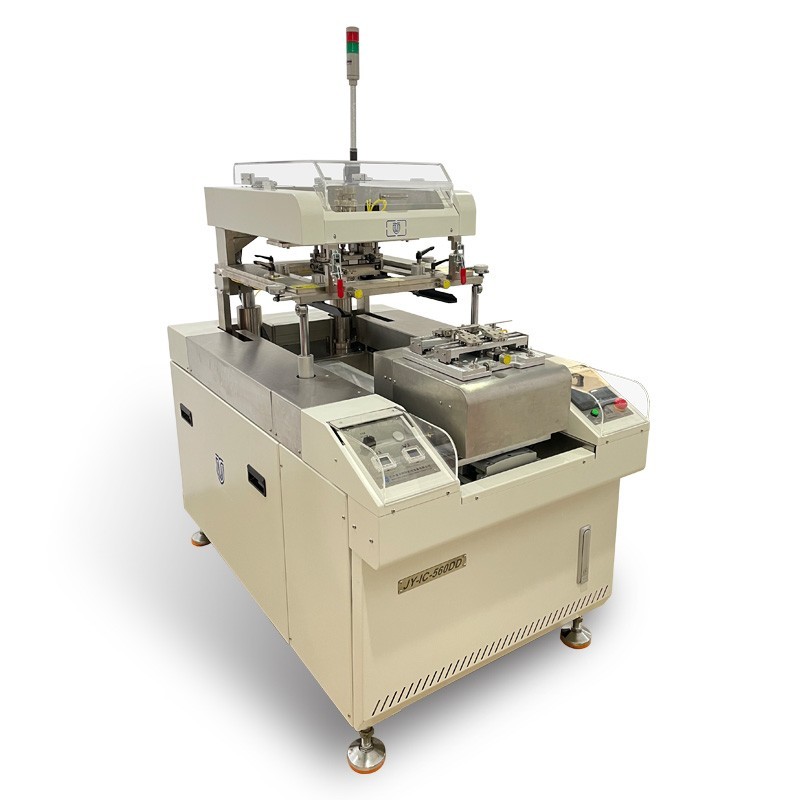

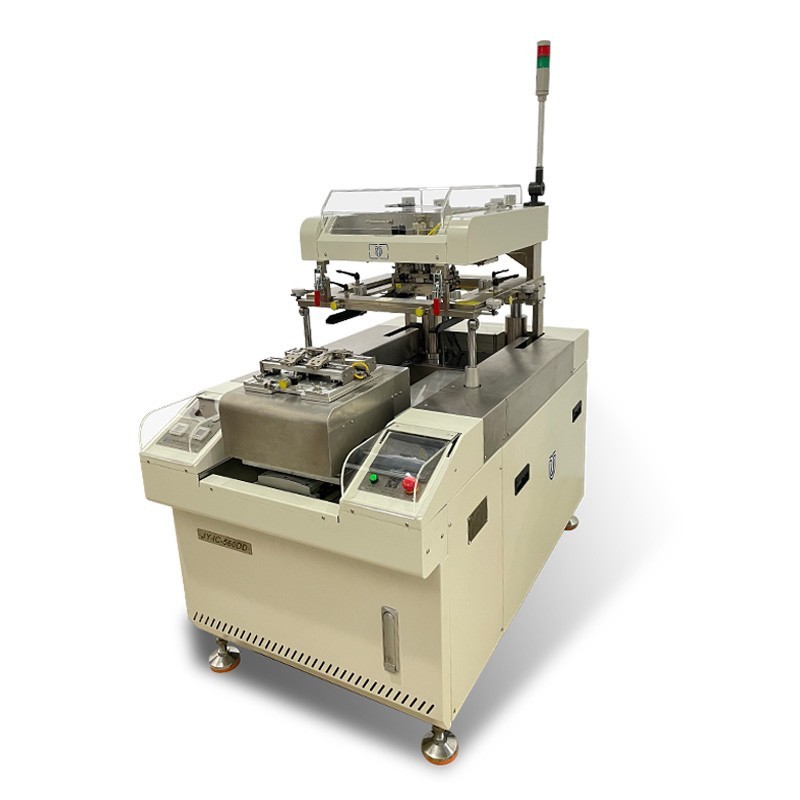

IC-560DD Screen Printer

Name: IC-560DD Screen Printer
Brand: JYSP
SKU: JY-IC-560DD
Availability: InStock
Rating: 5 (1 reviews)

No.JY-IC-560DD

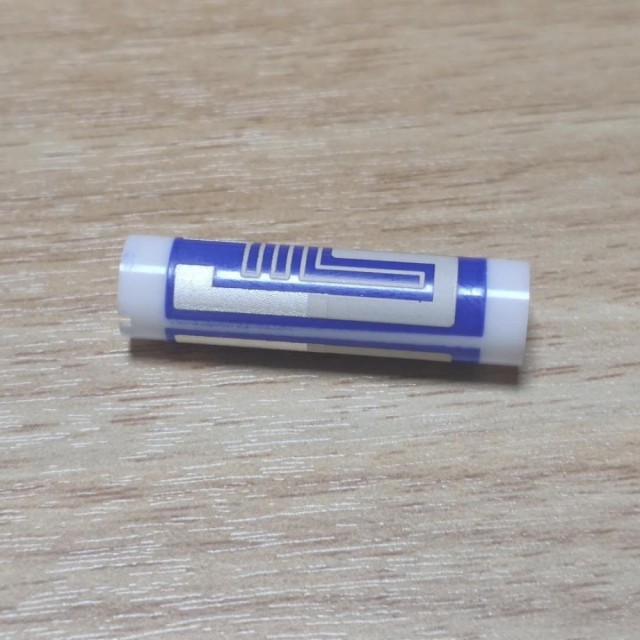

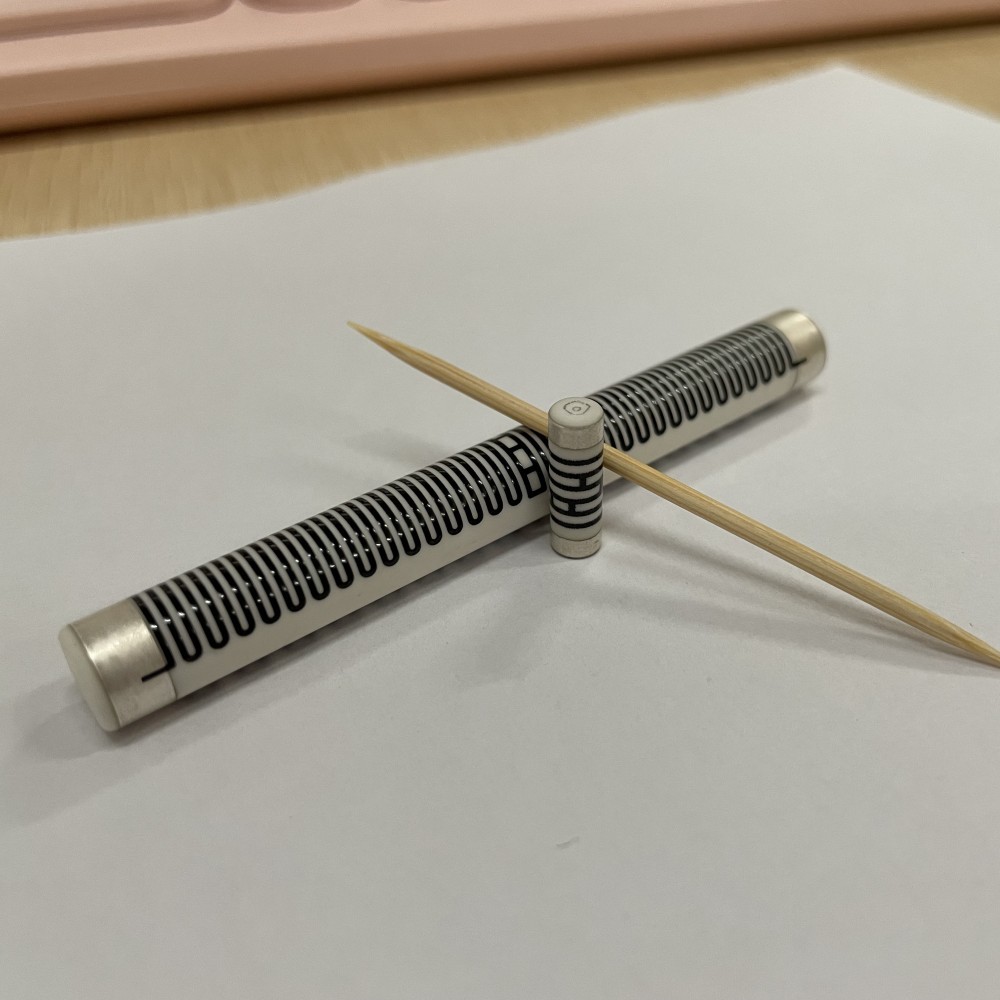

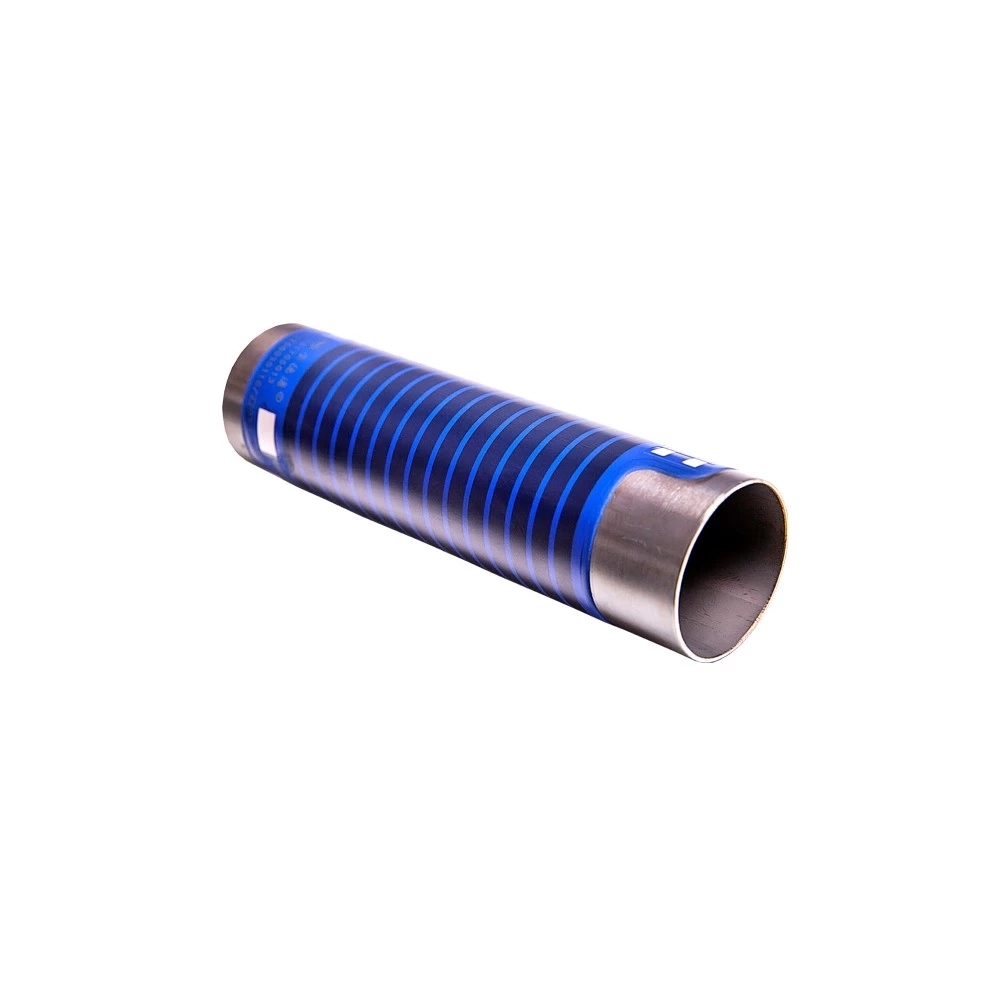

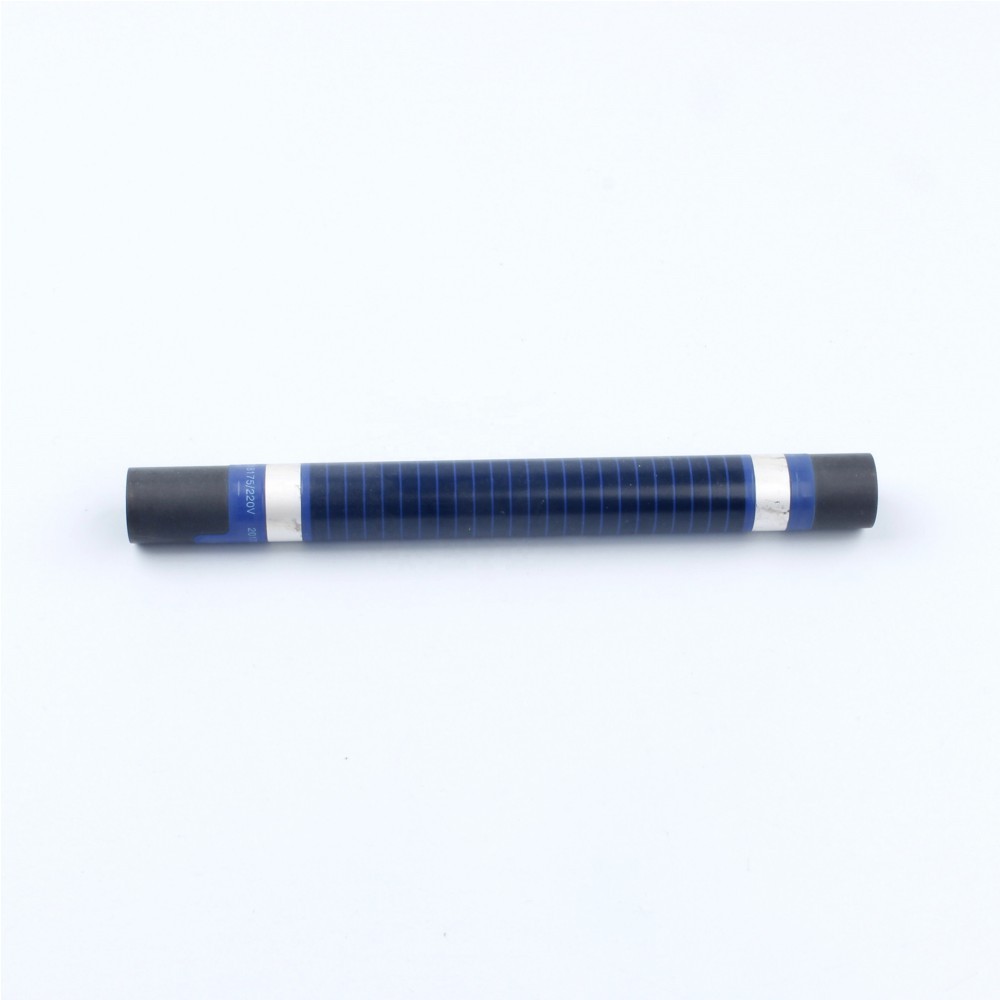

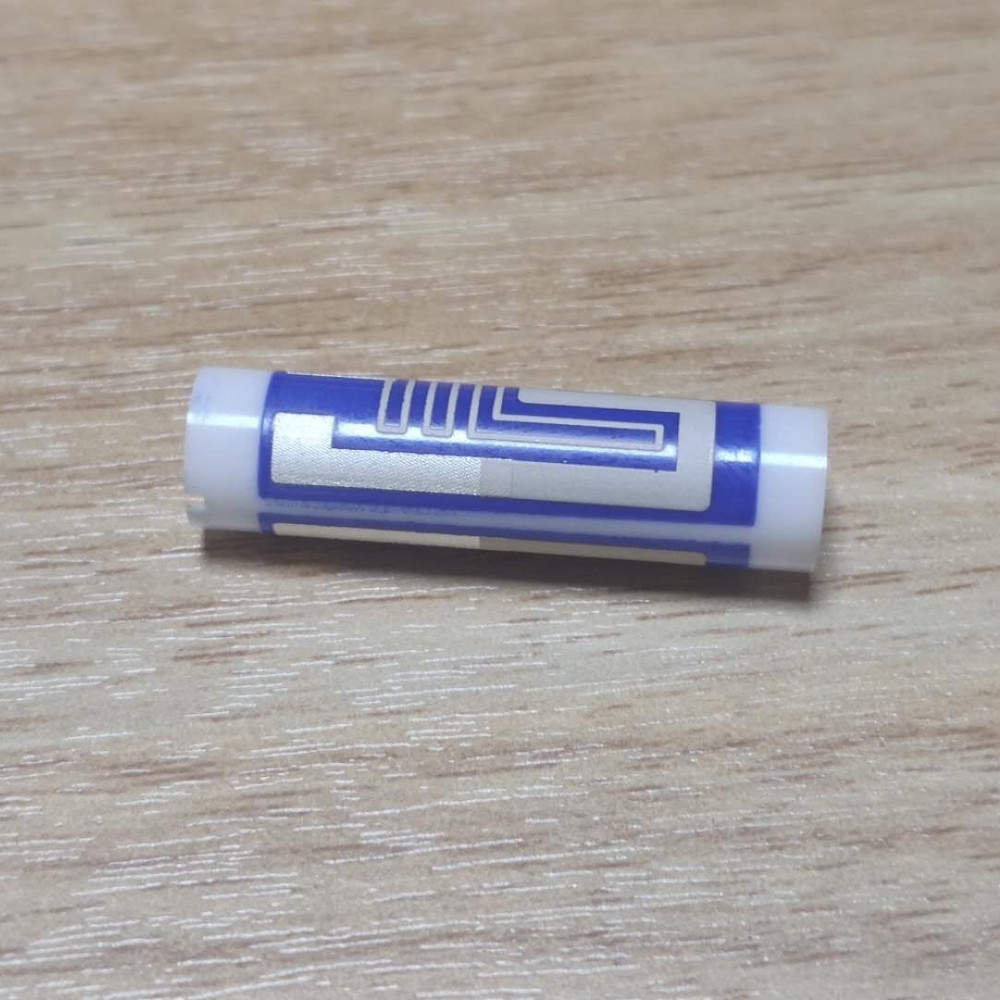

High precision screen printer for ceramic rod, cylinder and stainless tube.
Printing diameter : φ4-5mm
Printing length: 30-180mm
This unpowered equipment does not change the center position of the circular tube when changing product dimensions

Application Example:

Instantaneous Hot Component

Water Heater

Water Dispenser

Electric Kettle

Dripolator

Electric Food Warmer

Heat Faucet

SPECIFICATION

Features:

1、Left and right operation panels are equipped with transparent hood for observing easily and prevent misoperation.

2、An unpowered device does not change tubes’ center position when product size is changed.

3、Printing head adopts switch operation, which is convenient for exchanging scraper and inking knife.

4、Printing frame is fixed to 4 strong cast guide shafts, thus achieving high rigidity.

5、Screen frame is fixed on screen shelf by cylinders after a key operation, which is convenient to exchange screen frame.

6、It can be refitted from standard model to automatic production line.

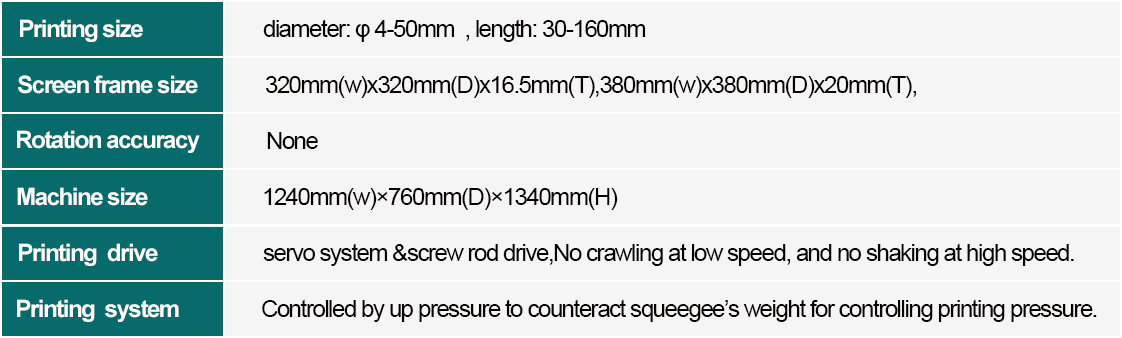

Basic Specifications
