Technical application of thick film printing technology in SOFC
SOFC (Solid Oxide Fuel Cell, also known as ceramic-based fuel cell) is a power generation device that directly converts the chemical energy of fuel into electrical energy through electrochemical reactions in a high-temperature environment. Due to its advantages of high conversion efficiency, wide fuel adaptability, and low-carbon environmental friendliness, it can be widely used in fields such as new energy vehicles, residential combined heat and power (CHP), and reverse hydrogen production.
Sep 24th,202612 Views
1.Structure and Fabrication Process of SOFC

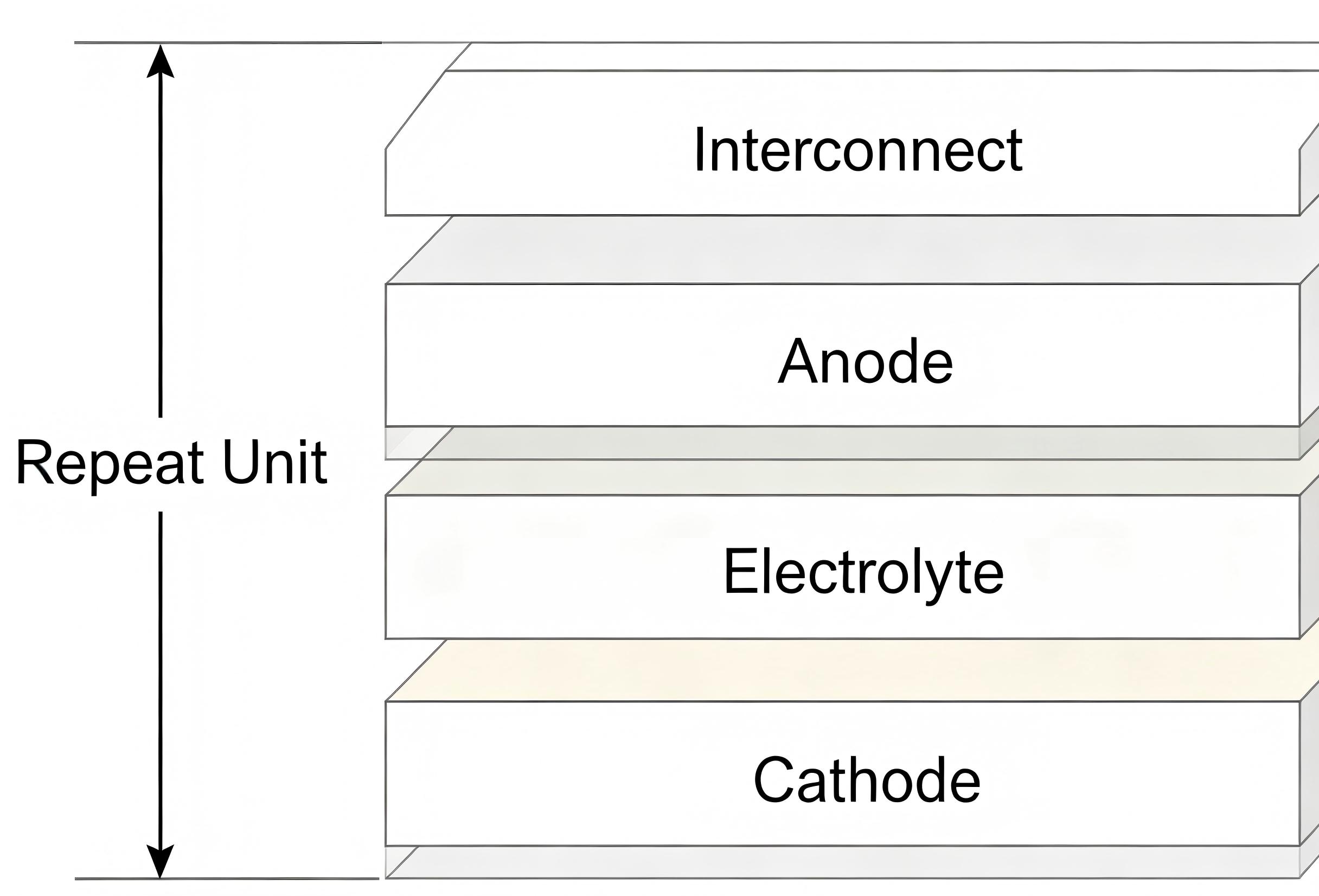

In terms of structure, a SOFC consists of an electrolyte, a cathode/anode, and an interconnect, which together form a single cell. Multiple single cells are then assembled into a stack. The cathode is a porous ceramic layer infiltrated with cathode catalyst material, while the anode is a porous ceramic layer infiltrated with anode catalyst material. The electrolyte is a ceramic layer with a porosity lower than that of the anode and cathode. Common ceramic forming processes include tape casting, spraying, screen printing, and dry pressing. Among them, high-precision thick film screen printing technology, with its advantages of high precision, low cost, and stable process, occupies an important position in SOFC fabrication and has been widely used in the preparation of electrolytes, anodes, and cathodes for SOFCs.
2.Technical Applications of Thick Film Printing Technology in SOFC A.Cathode In SOFC, the cathode is the main site for the oxygen reduction reaction, and its performance directly affects the output power and stability of the cell. High-precision thick film screen printing technology can be used to fabricate cathode thin films, precisely controlling the printing thickness and film thickness uniformity of cathode materials, thereby optimizing the microstructure and performance of the cathode. Cathodes prepared by this technology exhibit higher catalytic activity and lower polarization resistance, which helps improve the power generation efficiency of SOFCs.
B.Anode As an important component of SOFC, the anode's performance directly affects the output power and long-term stability of the cell. High-precision thick film screen printing technology can be used to fabricate uniformly distributed anode thin films. By precisely controlling the paste printing and sintering processes, the porosity and conductivity of the anode can be optimized, thereby improving the anode's performance and stability.
C.Electrolyte Layer The electrolyte is a key component in SOFC, responsible for conducting oxygen ions and separating the anode and cathode. High-precision thick film screen printing technology can be used to fabricate dense electrolyte thin films or porous electrolyte thin films. By precisely controlling printing parameters and sintering conditions, electrolyte membranes with excellent ionic conductivity and mechanical strength can be produced. In addition, this technology is also suitable for fabricating electrolyte layers with complex patterns and structures to meet the requirements of different application scenarios.
SOFC Green Ceramic Automatic Production Line
SOFC Fired Ceramic Automatic Production Line
3.Advantages and Challenges of Thick Film Printing Technology Advantages
High precision: It can achieve micron-level printing precision, ensuring precise replication and positioning of battery components.
High film thickness uniformity: It ensures uniform distribution of the paste on the substrate, improving the performance and stability of battery components.
Low cost: The equipment is simple, easy to operate, and suitable for industrial continuous production, helping to reduce production costs.
Challenges
Paste corrosion: The formulated paste may corrode the screen printing plate, requiring regular cleaning or replacement of the plate.
Process control: Printing parameters as well as drying and sintering conditions need to be precisely controlled to ensure the quality and performance of battery components.
4.Conlusion
High-precision thick film screen printing technology plays an important role in the fabrication of SOFCs, especially in the preparation of cathodes, electrolytes, and anodes. Through this technology, the microstructure and performance of cell components can be precisely controlled, thereby improving the power generation efficiency and stability of SOFCs. In the future, with continuous technological progress and further cost reduction, high-precision thick film screen printing technology is expected to play an even more important role in the commercial production of SOFCs. At the same time, it is also necessary to continue to strengthen research and innovation in this technology to meet the growing energy demand and environmental protection challenges.
